KAMA EV2 1.5 Ton Electric Mini Truck for Urban Delivery

The KAMA EV2 is a compact 1.5-ton battery electric mini truck designed for urban delivery, commercial transportation and fleet operations.

With a 3450 mm wheelbase, a practical 3300 × 1680 × 360 mm cargo bed, and multiple lithium iron phosphate battery configurations, the EV2 provides a flexible electric transport solution for distributors, logistics companies and commercial fleet operators.

Depending on the market and configuration, EV2 can be equipped with CATL or Gotion LFP battery systems and different charging interfaces, including CCS2 or GB/T.

It is suitable for applications such as:

• Urban logistics

• Retail distribution

• Agricultural transport

• Small business delivery

• Industrial park logistics

• FMCG distribution

• Municipal service

• Fleet transportation

1. 1.5 Ton Payload for Daily Commercial Work

The EV2 is positioned between compact 1-ton electric mini trucks and larger 2–3 ton electric light trucks.

Its 1.5-ton suggested payload makes it suitable for businesses that require more carrying capacity than a small urban delivery vehicle without moving to a larger light-truck platform.

Key dimensions

Overall Dimensions:
5595 × 1770 × 2070 mm

Wheelbase:
3450 mm

Cargo Box:
3300 × 1680 × 360 mm

Suggested Payload:
1.5 ton

GVW:
3150 kg

This combination gives the EV2 a practical balance between cargo capacity and vehicle size for city and regional commercial operations.

2. Multiple Battery Options for Different Markets

Different fleet applications require different battery configurations.

The KAMA EV2 can be discussed with different LFP battery systems depending on destination market and final vehicle specification.

CATL Battery Configuration

Battery Capacity:
41.86 kWh / 53.58 kWh

Battery Chemistry:
Lithium Iron Phosphate

Reference WLTP Range:
220 km / 280 km

Charging:
Fast / Slow Charging

Charging Interface:
CCS2 configuration available

This configuration can be suitable for export markets where CCS2 charging compatibility is required.

Gotion Battery Configuration

Battery Capacity:
51.46 kWh

Battery Chemistry:
Lithium Iron Phosphate

Reference Range:
Up to 300 km according to the supplied configuration sheet

Charging:
Fast / Slow Charging

Charging Interface:
GB/T

This configuration may be suitable for markets using GB/T charging infrastructure or where the corresponding charging system is acceptable.

Final battery brand, capacity, charging interface and range specification should be confirmed according to destination market and order configuration.

3. Electric Powertrain for Urban Logistics

The EV2 uses an electric drive system designed for commercial transportation.

Motor

Motor Supplier:
Wuhan LinControl

Rated Power:
35 kW

Peak Power:
70 kW

Maximum Speed

90 km/h

This powertrain is suitable for city delivery and commercial logistics where stable low-speed torque, frequent stop-and-go operation and lower operating noise are important.

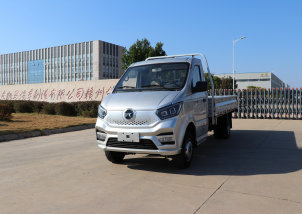

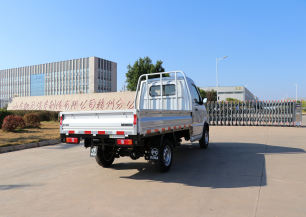

4. Practical Flatbed Cargo Configuration

The EV2 shown in the current production configuration uses a single-cabin flatbed body.

Cargo Box Size

3300 × 1680 × 360 mm

The flatbed configuration can serve multiple commercial applications such as:

• Building materials

• Agricultural products

• Packaged goods

• Hardware

• Retail products

• Industrial components

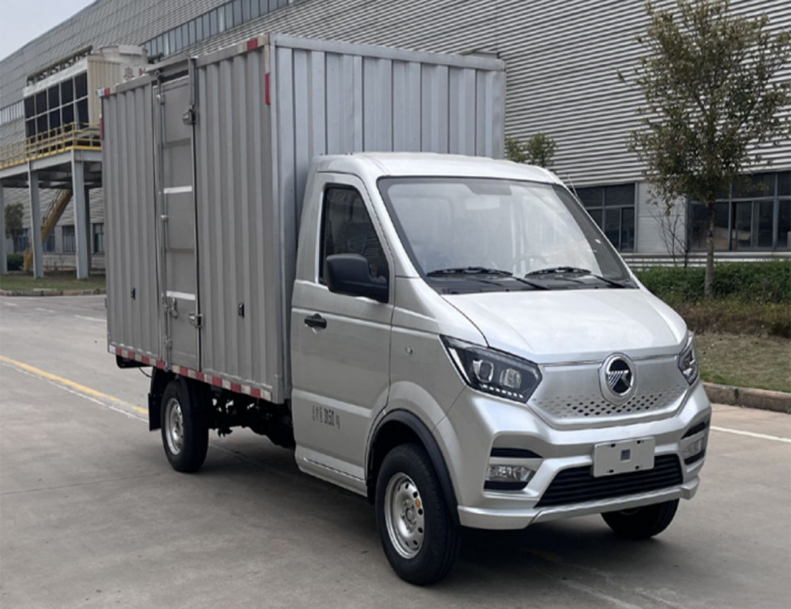

For project orders, different cargo-body requirements can be discussed subject to factory technical confirmation.

5. Compact Commercial Chassis

The EV2 uses a 3450 mm wheelbase chassis designed for light commercial operation.

Chassis Specifications

Wheelbase:
3450 mm

Front / Rear Track:
1560 / 1450 mm

Tire:
185R14LT

Wheel Quantity:
4 + 1 spare

Brake System:
Hydraulic brake

Front Brake:
Disc

Rear Brake:
Drum

These specifications provide a practical chassis structure for urban delivery and light commercial fleet use.

6. Single Cabin for Commercial Efficiency

The EV2 uses a single-cabin layout, maximizing the available chassis length for cargo.

For fleet buyers, this configuration is particularly suitable where cargo capacity is more important than additional passenger seating.

The compact cab also makes the vehicle easier to operate in:

• City streets

• Industrial parks

• Warehouses

• Distribution centers

• Local delivery routes

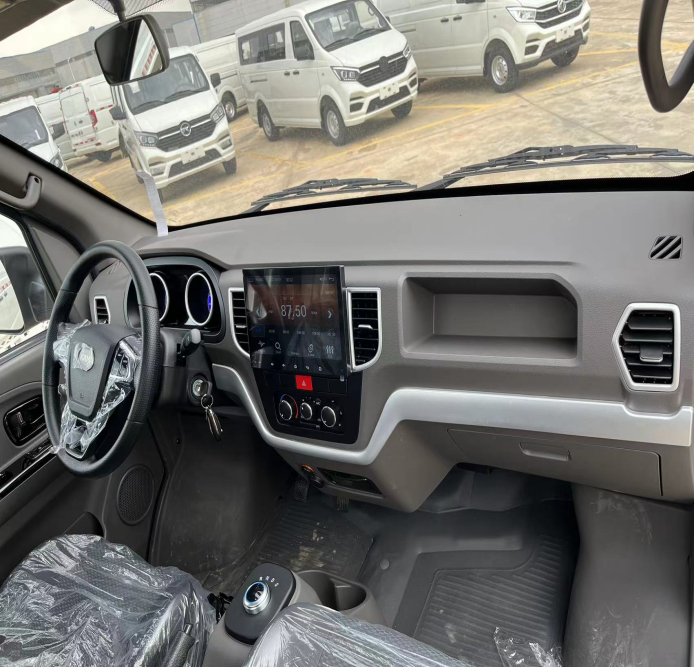

7. Simple EV Driver Information

The vehicle's instrument cluster provides basic EV operating information such as:

• Vehicle speed

• Battery state of charge

• Remaining vehicle information

• Operating status

• Warning indicators

EV Dashboard & Battery Status Display

8. Why Choose a 1.5 Ton Electric Mini Truck?

A 1.5-ton electric mini truck fills an important gap between smaller micro trucks and larger electric light trucks.

Compared with a 1 Ton Electric Mini Truck

EV2 provides:

• Higher payload

• Longer cargo bed

• Greater fleet flexibility

• More capacity for distribution operations

Compared with a 3 Ton Electric Light Truck

EV2 offers:

• Smaller vehicle dimensions

• Lower vehicle weight

• Easier urban operation

• Potentially lower energy demand

• Better suitability for light-to-medium delivery routes

This makes the EV2 particularly useful for fleet operators that do not require a full-size 3-ton truck.

9. Typical Applications

Urban Delivery

Suitable for daily distribution routes inside cities.

Retail & FMCG

Can support warehouse-to-store transportation and retail restocking.

Agriculture

Suitable for transporting vegetables, fruit and other agricultural products on short and medium routes.

Industrial Parks

Electric operation can be suitable for controlled industrial environments.

Small Business Transportation

A practical option for companies that need regular cargo transportation without a larger light truck.

Fleet Operations

Predictable routes and return-to-base operation make EV2 particularly suitable for fleet electrification projects.

10. EV2 Technical Specifications

11. Battery Configuration Options

*The 300 km value is shown in the supplied Gotion configuration sheet; final test standard and vehicle specification should be confirmed before quotation.

这个脚注非常重要，避免以后客户拿300 km和WLTP 280 km直接比较。

12. Warranty Reference

EV Core System

Motor, Battery and Controller:
5 years or 200,000 km

Complete Vehicle

2 years or 40,000 km

excluding wear and vulnerable parts.

13. Available Colors

Current standard colors shown in the supplied specification:

White / Silver

Additional color requirements can be discussed according to order quantity and production feasibility.

14. HS Code

HS Code: 8704600000

15. EV2 vs Other KAMA Electric Trucks

FAQ

What is the payload of the KAMA EV2?

The KAMA EV2 has a suggested payload of 1.5 tons, making it suitable for urban delivery, distribution and commercial fleet applications.

What battery does the EV2 use?

EV2 can be configured with different lithium iron phosphate battery systems. The supplied specifications include CATL 41.86 / 53.58 kWh configurations and a Gotion 51.46 kWh configuration.

What is the driving range of the EV2?

The CATL configurations provide reference WLTP ranges of approximately 220 km and 280 km, depending on battery capacity. Another supplied Gotion configuration lists a reference range of up to 300 km. Actual range depends on load, road conditions, speed, temperature and vehicle configuration.

Does EV2 support CCS2 charging?

A CCS2 fast/slow charging configuration is available with the corresponding CATL specification. Charging-port availability should be confirmed according to destination market.

What is the EV2 cargo box size?

The standard flatbed cargo box is approximately:

3300 × 1680 × 360 mm.

What is the maximum speed?

The reference maximum vehicle speed is 90 km/h.

Is EV2 suitable for fleet operation?

Yes. Its 1.5-ton payload, compact dimensions and electric powertrain make it suitable for predictable urban delivery routes, return-to-base fleets and commercial distribution.

Looking for a 1.5 Ton Electric Truck for Your Market?

The KAMA EV2 can be evaluated for distributors, fleet operators and commercial vehicle importers looking for a compact 1.5-ton electric cargo truck.

For an accurate vehicle recommendation and quotation, please provide:

Country:
Required Quantity:
Daily Mileage:
Average Payload:
Cargo Type:
Charging Standard:
Destination Port:
FOB / CIF Requirement:

Contact KAMA for the latest EV2 configuration and commercial proposal.
