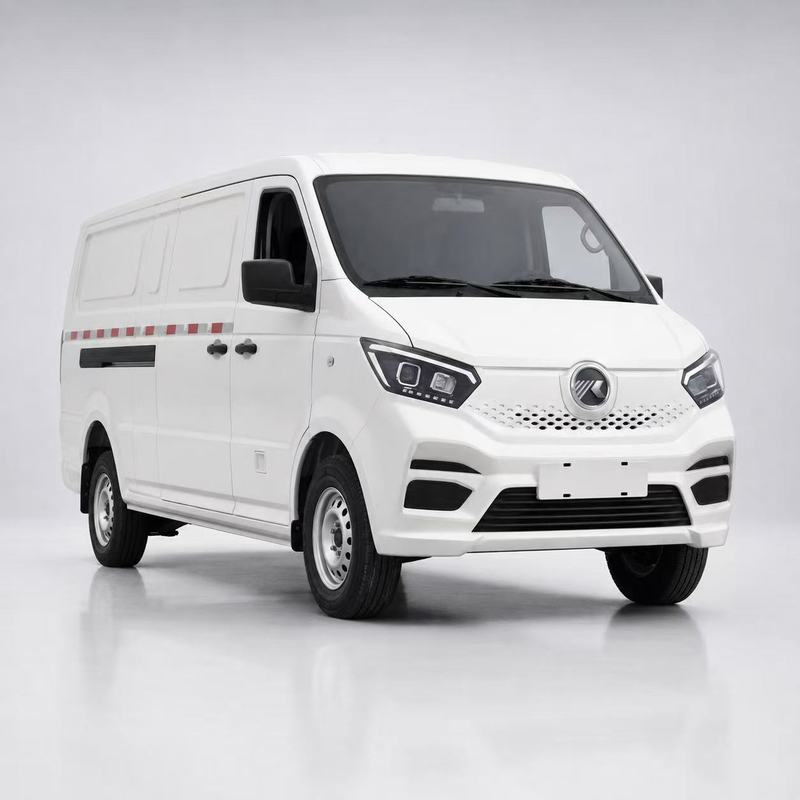

KAMA ES7 7m³ Electric Cargo Van 1.5 Ton Payload

KAMA ES7 7m³ Electric Cargo Van

The KAMA ES7 is a two-seat battery electric cargo van developed for urban distribution, last-mile delivery and commercial fleet operations. Its enclosed cargo compartment provides approximately 7 m³ of loading space, while the recommended 1,500 kg payload supports demanding daily transport applications.

Powered by a 41.932 kWh GOTION lithium iron phosphate battery and a 35/70 kW electric drive system, the ES7 delivers a WLTP range of up to 220 km under the specified test conditions. Fast and slow charging are supported, helping fleet operators arrange charging around daily delivery schedules.

The KAMA ES7 is available in left-hand-drive and right-hand-drive configurations. Charging interfaces, battery options, vehicle equipment and certification requirements must be confirmed according to the destination market.

Key Advantages

• Approximately 7 m³ enclosed cargo compartment
• Recommended payload of 1,500 kg
• 41.932 kWh GOTION LFP battery
• Up to 220 km WLTP driving range
• 35 kW rated and 70 kW peak motor power
• Two-seat commercial cargo configuration
• LHD and RHD versions available
• Fast and slow charging support
• ABS, power steering and air conditioning
• Suitable for fleet, distributor and delivery applications

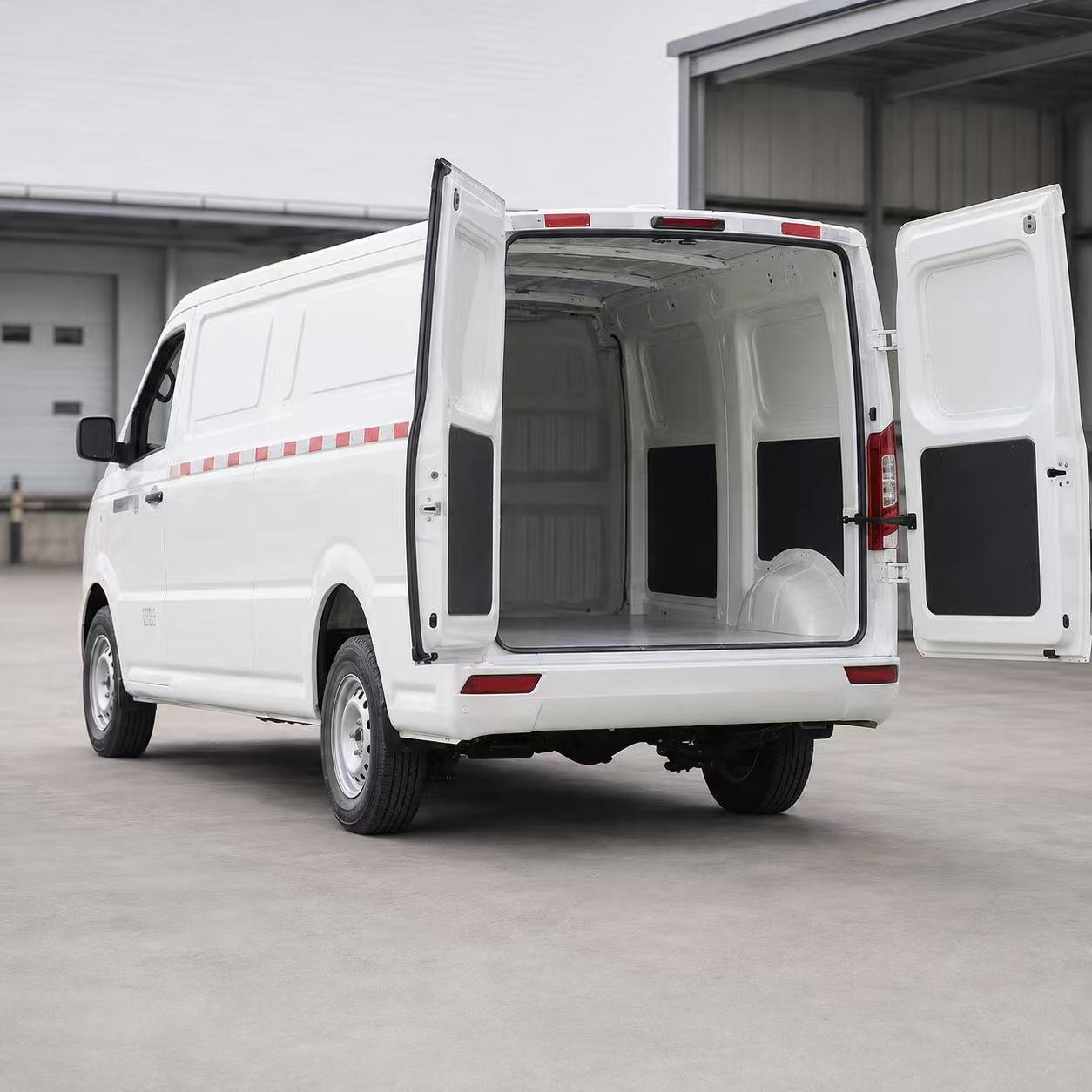

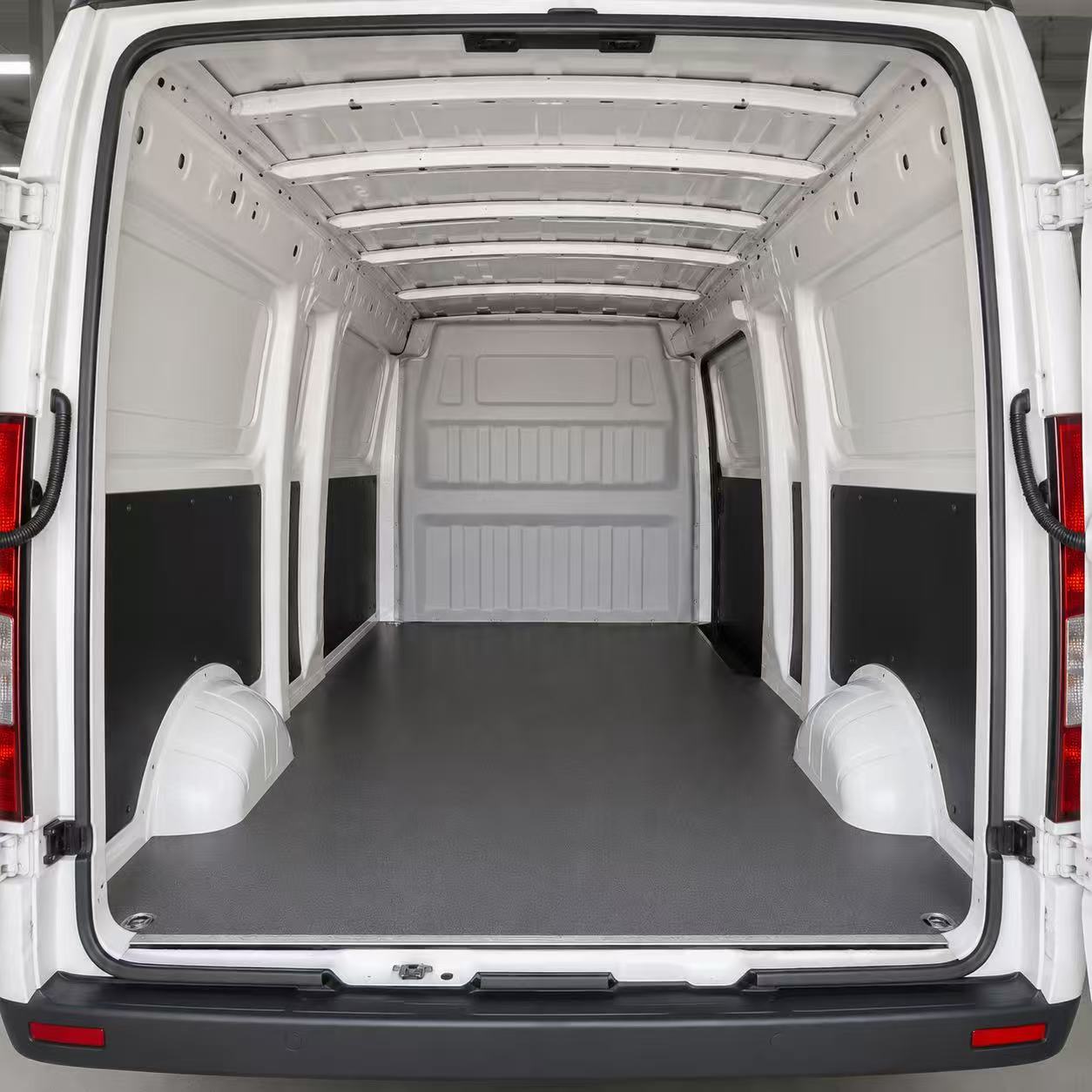

Large 7 m³ Cargo Compartment

The ES7 cargo compartment measures approximately 3,205 × 1,550 × 1,350 mm, providing nearly 7 m³ of usable cargo space.

This capacity makes the electric delivery van suitable for transporting parcels, groceries, beverages, tools, spare parts, retail products and other commercial goods. The enclosed body helps protect cargo during urban and regional transport.

With an overall width of 1,715 mm and a 3,450 mm wheelbase, the ES7 balances cargo capacity with practical maneuverability for city streets, warehouses, loading areas and distribution centers.

1.5-Ton Commercial Payload

The ES7 has a recommended payload of 1,500 kg, a curb weight of approximately 1,630 kg and a gross vehicle weight of 3,150 kg.

Its commercial load capacity makes it suitable for businesses that need more capability than a compact electric mini van while still requiring a manageable vehicle size for urban operation.

Actual allowable payload must be calculated according to the final vehicle configuration, installed equipment, local registration requirements and destination-market regulations.

GOTION LFP Battery and Electric Drive System

The standard ES7 configuration uses a 41.932 kWh GOTION lithium iron phosphate battery.

LFP battery chemistry is widely used in commercial electric vehicles because of its thermal stability, cycle-life characteristics and suitability for frequent fleet operation.

The Wuhan LinControl electric drive system provides:

• Rated motor power: 35 kW
• Peak motor power: 70 kW
• Rated input voltage: 332.8 V
• Maximum vehicle speed: 90 km/h
• Standard WLTP range: up to 220 km

Long-range battery configurations may also be discussed for suitable markets and order programs. Battery brand, capacity, driving range, vehicle weight, certification and price must be confirmed in the final technical specification.

The actual operating range will vary according to payload, road gradient, driving speed, traffic, ambient temperature, air-conditioning use, tyre pressure and driving habits.

Flexible Charging Options

The standard vehicle supports fast and slow charging using the GB/T charging interface.

For markets using European charging infrastructure, a CCS2 charging interface or charging adapter may be discussed. Charging compatibility must be checked against the local charging network before the order is confirmed.

Charging time depends on battery configuration, charger output, ambient temperature, battery state of charge and local power conditions.

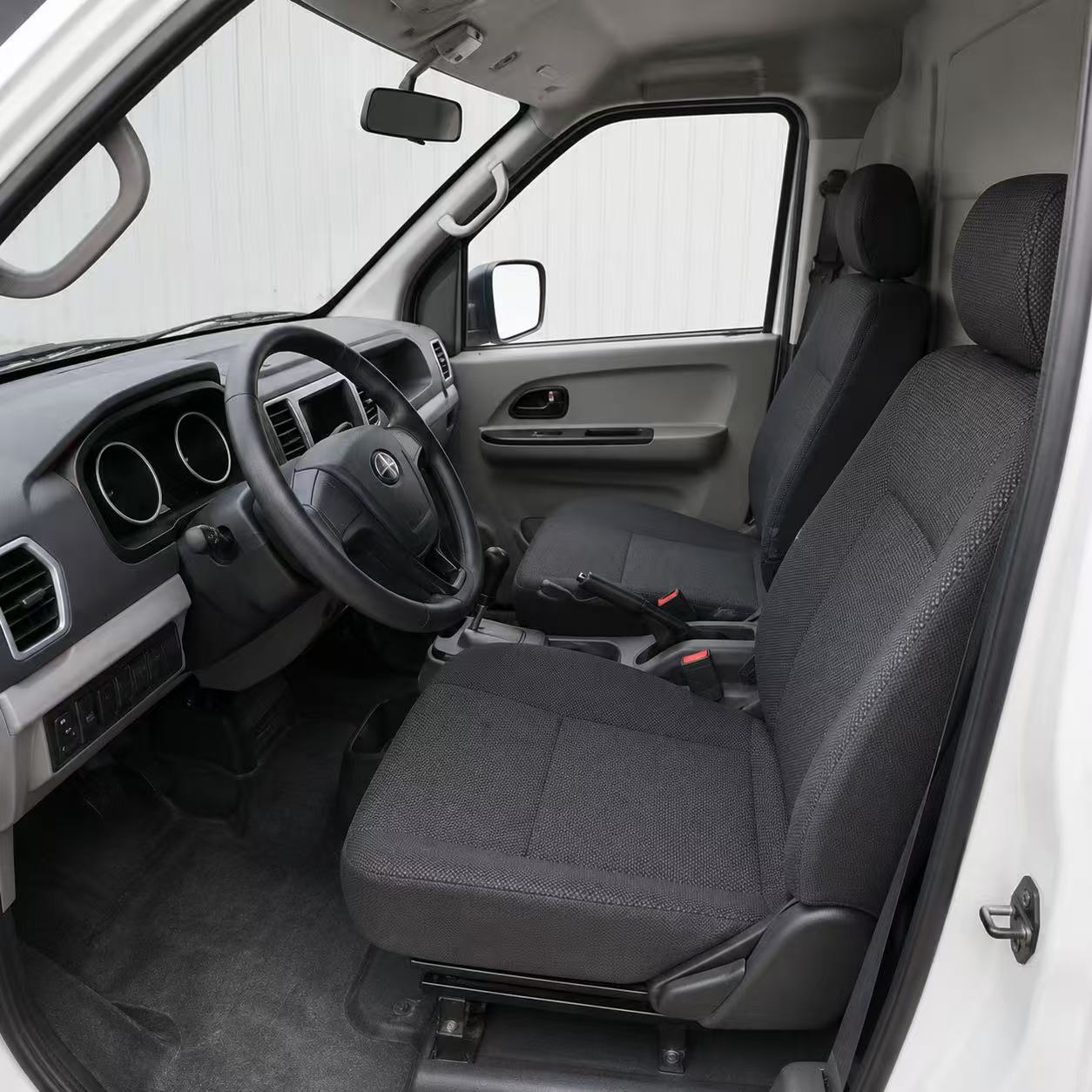

Driver Comfort and Standard Equipment

The ES7 is designed to support drivers working on repeated commercial routes. Available equipment includes:

• ABS
• Power steering
• Manual air conditioning
• Power windows
• Central locking
• MP5 multimedia system
• Reverse camera or parking assistance options
• Fast and slow charging
• Additional market-specific equipment

The exact standard and optional equipment must be listed in the official quotation and final vehicle configuration sheet.

Main Technical Specifications

Power Type: Battery Electric Vehicle

Model: ES7

Seats: 2

Steering Position: LHD / RHD

Drive Configuration: 4×2

Overall Dimensions: 5,265 × 1,715 × 2,065 mm

Wheelbase: 3,450 mm

Front / Rear Overhang: 750 / 1,065 mm

Cargo Compartment: 3,205 × 1,550 × 1,350 mm

Cargo Volume: Approximately 7 m³

Recommended Payload: 1,500 kg

Curb Weight: Approximately 1,630 kg

Gross Vehicle Weight: 3,150 kg

Maximum Speed: 90 km/h

WLTP Range: Up to 220 km

Battery Brand: GOTION

Battery Type: Lithium Iron Phosphate

Battery Capacity: 41.932 kWh

Rated Voltage: 332.8 V

Motor Brand: Wuhan LinControl

Rated / Peak Motor Power: 35 / 70 kW

Charging Type: Fast / Slow

Standard Charging Interface: GB/T

Optional Charging Interface: CCS2, subject to confirmation

Tyres: 185R14LT

Number of Wheels: 4 + 1 spare wheel

Brake System: Hydraulic brake, front disc and rear drum

Standard specification is shown for reference. Final specifications may vary according to battery, steering position, certification, destination market and order requirements.

Typical Applications

The KAMA ES7 commercial electric van can be used for:

• Parcel and express delivery
• E-commerce distribution
• Grocery and supermarket delivery
• Beverage and food distribution
• Retail store replenishment
• Warehouse-to-store transport
• Tools and equipment transport
• Municipal and utility services
• Mobile maintenance operations
• Commercial fleet leasing

Customization and Export Options

Depending on engineering feasibility, order quantity and destination-market regulations, KAMA can evaluate:

• Left-hand-drive or right-hand-drive configuration
• GB/T or CCS2 charging solution
• Long-range battery configuration
• Exterior body color
• Fleet logo and branding
• Cargo compartment lining
• Refrigerated cargo conversion
• Additional safety equipment
• Instrument and multimedia language
• Spare-parts package
• SKD or CKD cooperation

Every customization request must be evaluated for cost, production time, vehicle weight, certification and minimum order requirements.

Warranty and After-Sales Support

The standard KAMA warranty reference is:

• Battery, motor and electric controller: 5 years or 200,000 km
• Complete vehicle: 2 years or 40,000 km

Whichever limit is reached first applies. Warranty coverage, exclusions, vulnerable parts, maintenance requirements and claim procedures are subject to the final sales contract and warranty policy.

KAMA can also provide spare-parts recommendations, technical documents, online technical assistance and maintenance training options for distributors and fleet customers.

Frequently Asked Questions

What is the cargo capacity of the KAMA ES7?

The enclosed cargo compartment measures approximately 3,205 × 1,550 × 1,350 mm and provides nearly 7 m³ of cargo space. The recommended payload is 1,500 kg, subject to the final configuration and local regulations.

What is the driving range of the ES7 electric cargo van?

The standard 41.932 kWh GOTION battery configuration provides a WLTP range of up to 220 km. Actual operating range depends on payload, speed, road conditions, temperature, air-conditioning use and driving habits.

Is the KAMA ES7 available in right-hand drive?

Yes. Both LHD and RHD configurations can be discussed. Availability, production time and certification must be confirmed for the destination market.

Does the ES7 support CCS2 charging?

The standard configuration uses GB/T fast and slow charging. A CCS2 charging interface or adapter may be available for suitable markets, subject to technical confirmation.

Can KAMA provide a longer-range battery?

Long-range battery configurations may be available. Battery capacity, brand, vehicle weight, driving range, certification, price and production schedule must be confirmed before ordering.

Does the ES7 have European certification?

Selected ES7 configurations may be supported with EU WVTA documentation. The exact vehicle version, battery, charging interface and certificate scope must be verified before shipment and registration.

Can I order one ES7 as a sample?

A sample order may be possible, depending on current inventory, steering position, battery configuration and destination country. Please contact KAMA for the latest availability.

Request an ES7 Quotation

To receive an accurate quotation, please provide:

• Destination country and port
• Required quantity
• LHD or RHD
• Daily operating mileage
• Expected payload
• Required charging standard
• Standard or long-range battery requirement
• CBU, SKD or CKD cooperation plan

Email: overseas@kamaqc.cn

WhatsApp / WeChat: +86 136 0639 6917

Website: https://www.kamaauto.com/

All specifications, options, prices, inventory, delivery times, certification documents and warranty terms are subject to final confirmation in the official quotation and signed sales documents.
